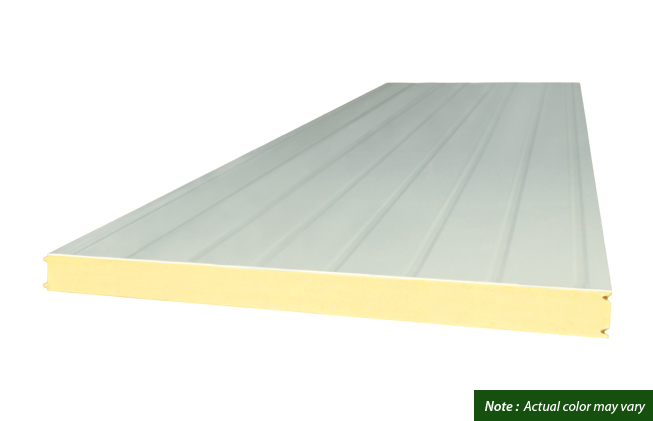

Standard PU Panel
THERMAL PROPERTIES
| PANEL THICKNESS (mm) |
APPLICATION TEMPERATURE (°C) |
THERMAL RESISTANCE, R m² - °K W |
THERMAL CONDUCTANCE, C __W__ m² - °K |
|||
| 50 |
( + ) 10 | 2.38 |
0.42 |
|||
| 75 |
( + ) 10 - ( - ) 10 |
3.57 |
0.28 |
|||
| 100 |
( - ) 10 - ( - ) 20 |
4.76 |
0.21 |
|||
| 125 |
( - ) 20 - ( - ) 30 |
5.95 |
0.17 |
|||
| 150 |
( - ) 30 - ( - ) 40 |
7.14 |
0.14 |
SPECIFICATIONS
| PROPERTY |
VALUE | REFERENCE STANDARD |
||
| DENSITY |
40 - 45 kg/m³ min. |
DIN EN ISO 845 |
||
| THERMAL CONDUCTIVITY |
0.021 W/m -°K |
DIN EN 12667 |
||
| EFFECTIVE COVERAGE |
1157 mm |
|||
| INSULATION THICKNESS |
50 - 300 mm 25 - 30 mm (also available upon request) |
|||
| SKIN MATERIAL |
Prepainted galvanized steel or other metallic coated material |
|||
| METAL THICKNESS |
0.30 mm - 0.80 mm | |||
| PANEL LENGTH |
Transportable Length | |||
