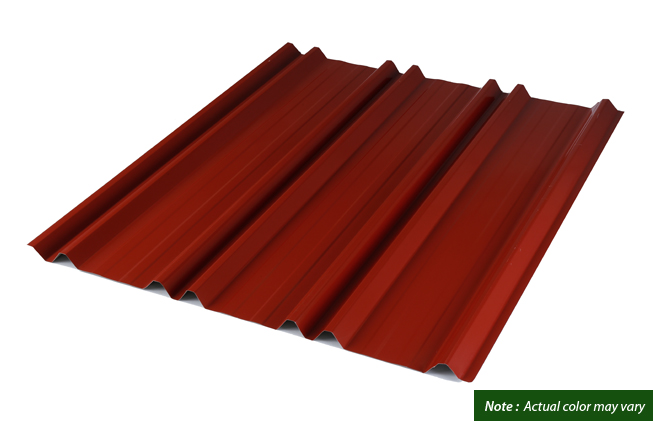

Duratile Durarib Duratwin Duracorr Laverne Mega Hi-Rib SEE ALL PRODUCTSDuratwin
PRODUCT INFORMATION
|
Substrate/
Reference Standards
|
Hot-dip Zinc-Coated Steel Coils
PNS 1990:2004; JIS G 3302; ASTM A 653; ISO 3575
Hot-dip 55% Aluminum-Zinc Coated Steel Coils
PNS 1993:2004; JIS G 3321; ASTM A 792; ISO 9364
|
|
|
Nominal Thickness
|
0.30 mm to 0.80 mm
|
|
|
Feed Width
|
1220 mm
|
|
| Effective Coverage | 963 mm | |
| Rib Height | 30 mm | |
|
Paint Coating System
|
Oven cured high performance quality epoxy primer and polyester top coat and back coat paints. | |
| Also Available upon request | Silicone Modified Polyester (SMP) PolyvinylideneDiflouride (PVDF) |
|
|
Paint Coating Thickness
|
For Regular Colors : Topcoat : 12 - 20 microns
Backcoat : 4 - 8 microns
|
|
|
Available Colors
|
Red, Green, Beige, Blue, Orange, White, Brown
Special Colors also available upon request |
|
|
Length
|
Transportable length up to 20 meters Onsite Rollforming for longer panels |
|
