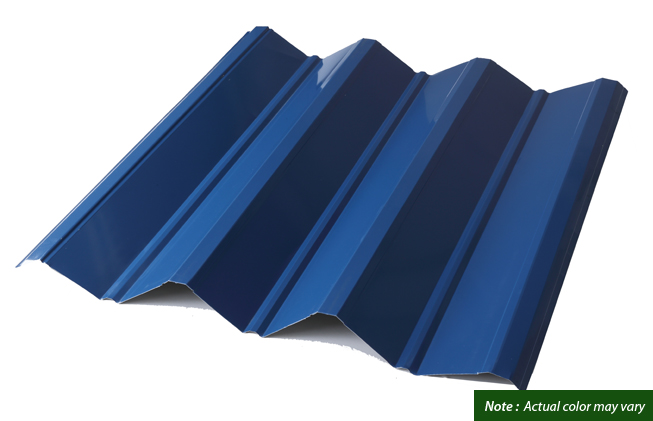

Mega Hi-Rib

PRODUCT INFORMATION

Base Metal Type
Cold Rolled Steel, Commercial Quality
Tensile Strength -275 MPa (40,000 psi)minimum
Substrate/
Reference Standards
Hot-dip Zinc-Coated Steel Coils
PNS 1990:2004; JIS G 3302; ASTM A 653; ISO 3575

Hot-dip 55% Aluminum-Zinc Coated Steel Coils
PNS 1993:2004; JIS G 3321; ASTM A 792; ISO 9364
Nominal Thickness
0.50 mm to 0.60 mm
Feed Width
1220 mm
Effective Coverage 918 mm (Tolerance +8 / -5)
Rib Height 88 mm
Paint Coating System
Oven cured high performance quality epoxy primer and polyester top coat and back coat paints.
Also Available upon request Silicone Modified Polyester (SMP)
Polyvinylidene
Diflouride (PVDF)
Paint Coating Thickness
For Regular Colors :   Topcoat  :   12 - 20 microns
                                Backcoat :   4 - 8 microns
Available Colors
Red, Green, Beige, Blue, Orange, White, Brown
Special Colors also available upon request
Length
Transportable length up to 20 meters
Onsite Rollforming for longer panels

USED IN:
