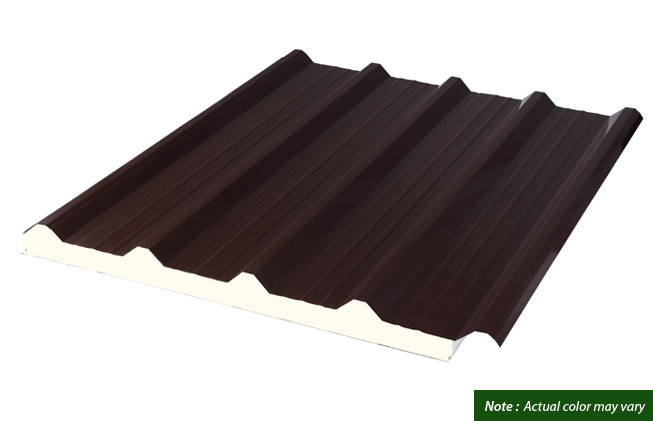

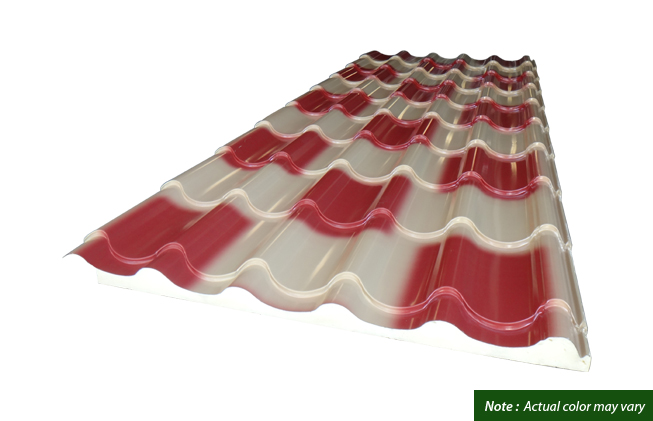

Roofing PU Panel
THERMAL PROPERTIES
| PANEL THICKNESS (mm) |
APPLICATION TEMPERATURE (°C) |
THERMAL RESISTANCE, R m² - °K W |
THERMAL CONDUCTANCE, C __W__ m² - °K |
|||
| 25 |
( + ) 20 | 1.19 |
0.84 |
|||
| 30 |
( + ) 20 |
1.43 |
0.70 |
|||
| 50 |
( + ) 10 |
2.38 |
0.42 |
|||
| 75 |
( + ) 10 - ( - ) 20 |
3.57 |
0.28 |
SPECIFICATIONS
| PROPERTY |
VALUE | REFERENCE STANDARD |
||
| DENSITY |
30 kg/m³ min. |
DIN EN ISO 845 |
||
| THERMAL CONDUCTIVITY |
0.021 W/m -°K |
DIN EN 12667 |
||
| INSULATION THICKNESS |
25 mm. - 75mm. |
|||
| SKIN MATERIAL |
Prepainted galvanized steel or other metallic coated material |
|||
| METAL THICKNESS |
0.30 mm - 0.80 mm |
|||
| PANEL LENGTH |
Transportable Length |
|||
