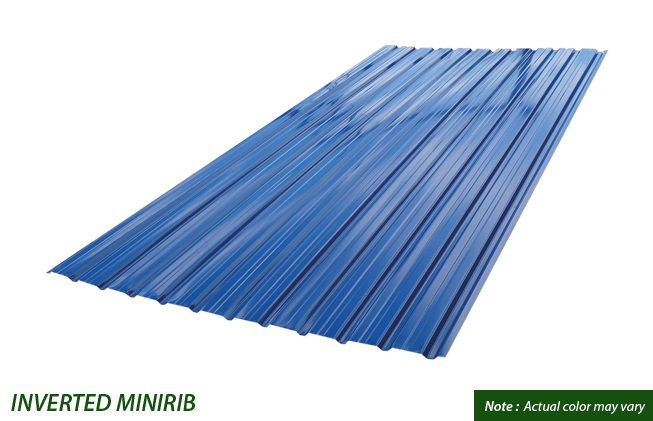

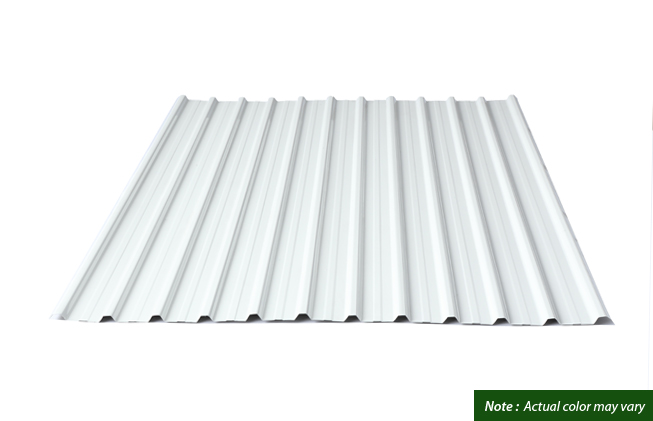

Minirib

PRODUCT INFORMATION

Substrate/
Reference Standards
Hot-dip Zinc-Coated Steel Coils
PNS 1990:2004; JIS G 3302; ASTM A 653; ISO 3575

Hot-dip 55% Aluminum-Zinc Coated Steel Coils
PNS 1993:2004; JIS G 3321; ASTM A 792; ISO 9364
Nominal Thickness
0.20 mm to 0.60 mm
Feed Width
915 mm and 1220 mm
Effective Coverage 780 mm and 1064 mm
Rib Height 10 mm
Paint Coating System
Oven cured high performance quality epoxy primer and polyester top coat and back coat paints.
Also Available upon request Silicone Modified Polyester (SMP) and Polyvinylidene Diflouride (PVDF)
Paint Coating Thickness
For Regular Colors :   Topcoat  :   12 - 20 microns
                                Backcoat :   4 - 8 microns

Available Colors
Red, Green, Beige, Blue, Orange, White, Brown
Special Colors also available upon request
Length
Transportable length up to 20 meters
Onsite Rollforming for longer panels
