Building System Components

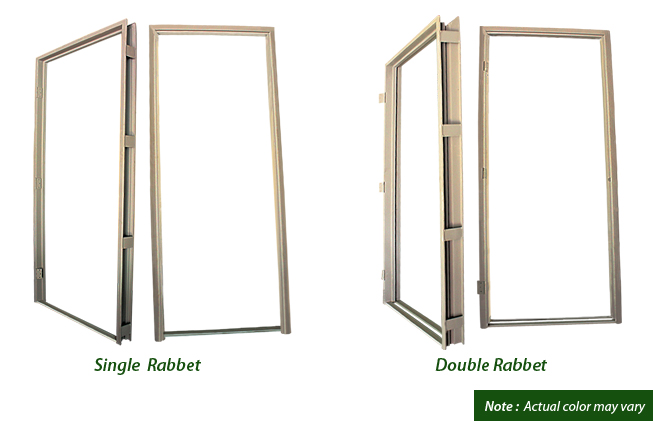

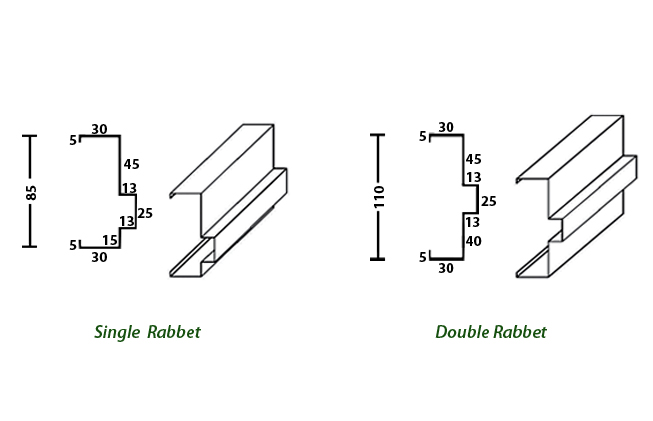

Duraweb Duradeck V-deck Door Jamb C Purlins and Battens Light Metal Frames SEE ALL PRODUCTSDoor Jamb
PRODUCT INFORMATION
|
Substrate/
Reference Standards
|
Continuous Hot-dip Zinc-Coated Galvanized Steel
PNS 1990:2004; JIS G 3302; ASTM A 924/653; ISO 3575
|
|
|
Nominal Thickness
|
0.80 to 1.20 mm
|
|
|
Feed Width
|
176 and 199 mm
|
|
| Jamb Width | 700, 800 and 900 mm | |
| Jamb Height | 2100 mm | |
| Steel Grade | Structural Quality, Yield Strength: 275 - 550 MPa (40,000 - 80,000 psi) Also Available: Commercial Quality, CQ 160 MPa mi |
|
| Zinc Coating | Z120 | |
| Applications | Suited for residential, commercial and industrial applications | |
